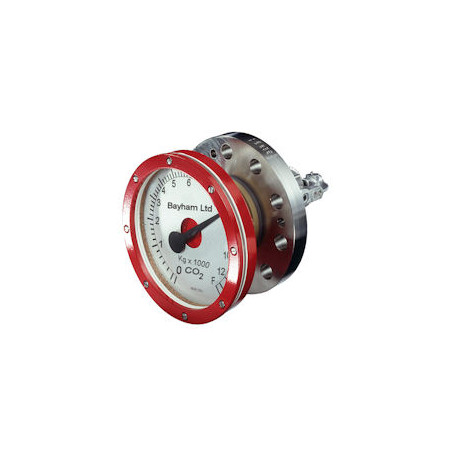

Tank level gauge 6''

BAYHAM

Ref. REDS MRO:PC171-00011

Previous.ref : PC171-00011

Ref.maker : DR150AIR FULL-1/4-1/2-3/4-EMPT

Bayham gauges are known for direct mounting on reservers where cisterns, they provide a continuous indication of tank fluid level.

Flange diameter = 150 mm

If you require a calibration, we will need a drawing of your tank that you can send us when the sales representative contacts you to validate your order.

Available within 3 to 5 weeks

Price - €HT

The order of this product subjects to territoriality and importation's conditions.

Add to wishlist

You must be logged

Need an advice ? Contact Us!

+33(0) 474 027 257Mon. / Fri. -9h to 17h

Bayham gauges are known for direct mounting on reservers where cisterns, they provide a continuous indication of tank fluid level. Each gauge incorporates a magnetic coupling across the body to prevent fluid leakage into the dial chamber. Installation: The current position for gauge is located halfway up the tank, allowing to use short float arm. Baffles or internal penetrations must not be interfered with the float arm bow. Please note that the size, number and position of the bride's fitting pants are different for each gauge.

Flange diameter = 150 mm

If you require a calibration, we will need a drawing of your tank that you can send us when the sales representative contacts you to validate your order.
