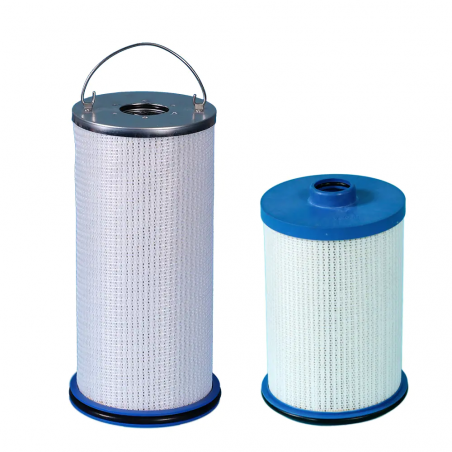

Filter Cartrdige OS-51288

PARKER

Ref. REDS MRO:PC214-00352

Previous.ref : PC214-00352

Ref.maker : OS-51288

The OS Series combination coalescer/separator cartridges filter dirt and remove water from aviation and diesel fuels. They are designed to fit into VF-61 and VF-609 housings, Facet's VFCS-21 and VFCS-22 filter/separator housings, and Racor's FBO-10 and FBO-14 housings.

Learn more

IN STOCK

Price - €HT

The order of this product subjects to territoriality and importation's conditions.

Add to wishlist

You must be logged

Need an advice ? Contact Us!

+33(0) 474 027 257Mon. / Fri. -9h to 17h

Download product sheet
Complementary products

The OS Series combination coalescer/separator cartridges filter dirt and remove water from aviation and diesel fuels. They are designed to fit into VF-61 and VF-609 housings, Facet's VFCS-21 and VFCS-22 filter/separator housings, and Racor's FBO-10 and FBO-14 housings.

  • Item Information

Coalescer/Separator Cartridges for Aviation & Diesel Fuels

OS Series

Designed for superior performance in VF-61 & VF-609 Housings, Facet's VFCS-21 & VFCS-22 Filter/Separator Vessels & Racor's FBO-10 & FBO-14 Housings

FEATURES

  • Can be used with pre-mixed fuel containing anti-icing additive
  • One piece replacement combination coalescer and separator cartridge
  • OS-51288 Cartridge: Laboratory tested to 0.2% water in incoming fuel, 10 ppm in effluent*
  • Teflon® coated screen separator
  • Reliable radial sump seal design
  • Nominal 0.5 micron particle efficiency for jet fuel and avgas; 5 micron for diesel fuel
  • Minimum 75 psid collapse strength
  • Flow direction – outside to inside
  • Operating temperatures up to 240°F (115°C)
  • 5 - 9 operating pH range

Technical Specifications

  • Length (inch):11 3/4
  • Micron Rating (µm):5
  • Brand:Velcon
  • Application:Aviation, Diesel
  • Media:Teflon Coated Separator with Coalescer/Filter
  • Seal Material:Buna N Radial
  • Outside Diameter (inch):6
  • Filter Type:Coalescer Separator
  • Application:Aviation, Diesel
  • pH Range:Continuous Operation: 5 - 9
  • Maximum Operating Temperature:240 °F, 115 °C
  • Minimum Collapse Strength:75 psid
